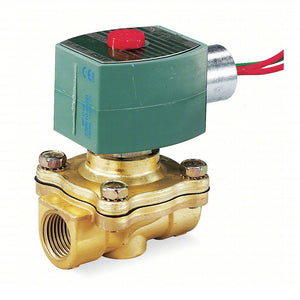

REDHAT 8210 Series Solenoid Valve - ASCO 8210G100-120VAC Solenoid Valve - 120 VAC, Normally Closed, 2" Pipe Size, Watertight, Brass Body, NBR seal

The REDHAT ASCO 8210G100 valve is a 2-way / 2 position general purpose solenoid with an inlet and outlet port and operates in two states: open or closed. Normally closed valves remain shut until energized to open and allow flow. The valve operates on 120 VAC

2 Way Normally Closed, Brass Body, 2" NPT Pipe, 1-3/4" Orifice, 43 Cv, 5 PSI Min, 150 PSI Max Air, 125 PSI Max Water, 90 PSI Max Light Oil, 180F Max, 6.1/F Din Form A Spade Coil
