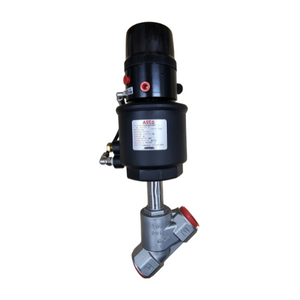

ASCO 8290A060PDB67 - Angle Body Piston Valve with 4-20 mA Proportional Pressure Control Valve (PPC), Normally Closed, 1 1/4 in. Pipe Size, Stainless Body, PTFE Seal
The ASCO 8290A060PDB67 consists of a 4-20 mA proportional pressure control (PPC) valve with normally closed position constructions. Built for demanding applications, these valves come in a straight-through body design made of stainless steel.
ASCO 8290A060PDB67 - Angle Body Piston Valve with 4-20 mA Proportional Pressure Control Valve (PPC), Normally Closed, 1 1/4 in. Pipe Size, Stainless Body, PTFE Seal
The ASCO 8290A060PDB67 consists of a 4-20 mA proportional pressure control (PPC) valve with normally closed position constructions. Built for demanding applications, these valves come in a straight-through body design made of stainless steel.
| Specifications | |
|---|---|
Manufacturer Part Number |
8290A060
|
Body Material |
Stainless Steel
|
Operator Size (Inches) |
90 mm
|
Operating Mode |
Normally Closed
|
Media Entry Point |
Under the Disc
|
Pipe Size (Inches) |
1 1/4
|
Orifice Size (Inches) |
1 1/4
|
Cv Flow (On-Off) |
32
|
Cv Flow (Prop.) |
24
|
Operating Pressure Differential Minimum PSI |
0
|
Operating Pressure Differential (Fluids) PSI |
180
|
Operating Pressure Differential (Steam) PSI |
150
|
Max Fluid Temp. |
366
|
Pilot Pressure Range PSI |
60 / 150
|
Shipping Weight |
7.7
|
ASCO 8290A060PDB67 - Angle Body Piston Valve with 4-20 mA Proportional Pressure Control Valve (PPC)
- Regular price
- $2,675.95
- Sale price
- $2,675.95
