Product Details

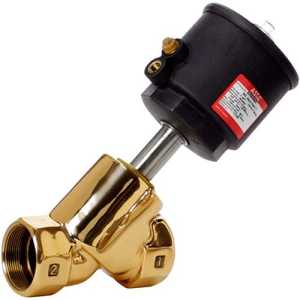

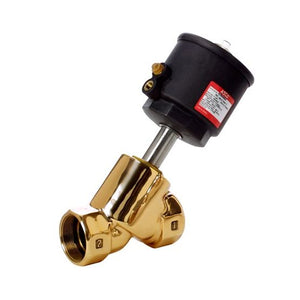

ASCO 8290A021 - Angle Body Piston Valve - Standard Voltage: 2-Way, Normally Closed, 1 1/2 in Pipe Size, Bronze Body, PTFE Seal
The ASCO 8290A021 consists of 2-way direct acting valves in normally closed position constructions. Built for demanding applications, these valves come in a straight-through body design made of bronze.
1.5" NPT 2 way NC Piston Valve, Entry Under Disc, 90 mm Operator, Bronze Body, 1.5" Orifice, 52 Cv, 0 PSI Min, 120 PSI Max, 366F Max
ASCO 8290A021 - Angle Body Piston Valve - Standard Voltage: 2-Way, Normally Closed, 1 1/2 in Pipe Size, Bronze Body, PTFE Seal
The ASCO 8290A021 consists of 2-way direct acting valves in normally closed position constructions. Built for demanding applications, these valves come in a straight-through body design made of bronze.
1.5" NPT 2 way NC Piston Valve, Entry Under Disc, 90 mm Operator, Bronze Body, 1.5" Orifice, 52 Cv, 0 PSI Min, 120 PSI Max, 366F Max
| Specifications | |
|---|---|
Manufacturer Part Number |
8290A021
|
Body Material |
Bronze
|
Operator Size (Inches) |
90 mm
|
Operating Mode |
Normally Closed
|
Media Entry Point |
Under the Disc
|
Pipe Size (Inches) |
1 1/2
|
Orifice Size (Inches) |
1 1/2
|
Cv Flow (On-Off) |
52
|
Cv Flow (Prop.) |
33
|
Operating Pressure Differential Minimum PSI |
0
|
Operating Pressure Differential (Fluids) PSI |
120
|
Operating Pressure Differential (Steam) PSI |
120
|
Max Fluid Temp. |
366
|
Pilot Pressure Range PSI |
60 / 150
|
Shipping Weight |
9.5
|
ASCO 8290A021 - Angle Body Piston Valve
- Regular price
- $795.95
- Sale price
- $795.95
